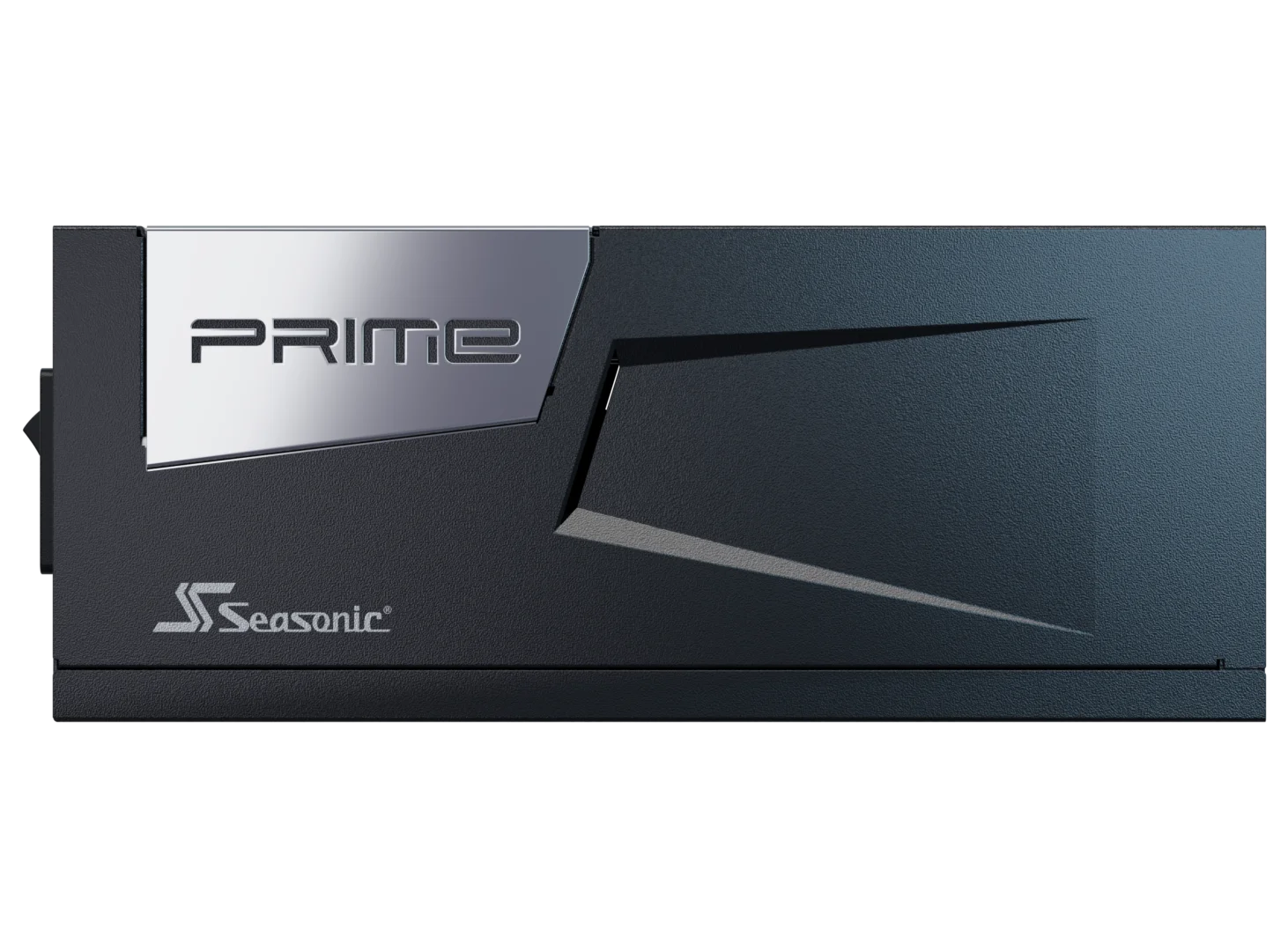

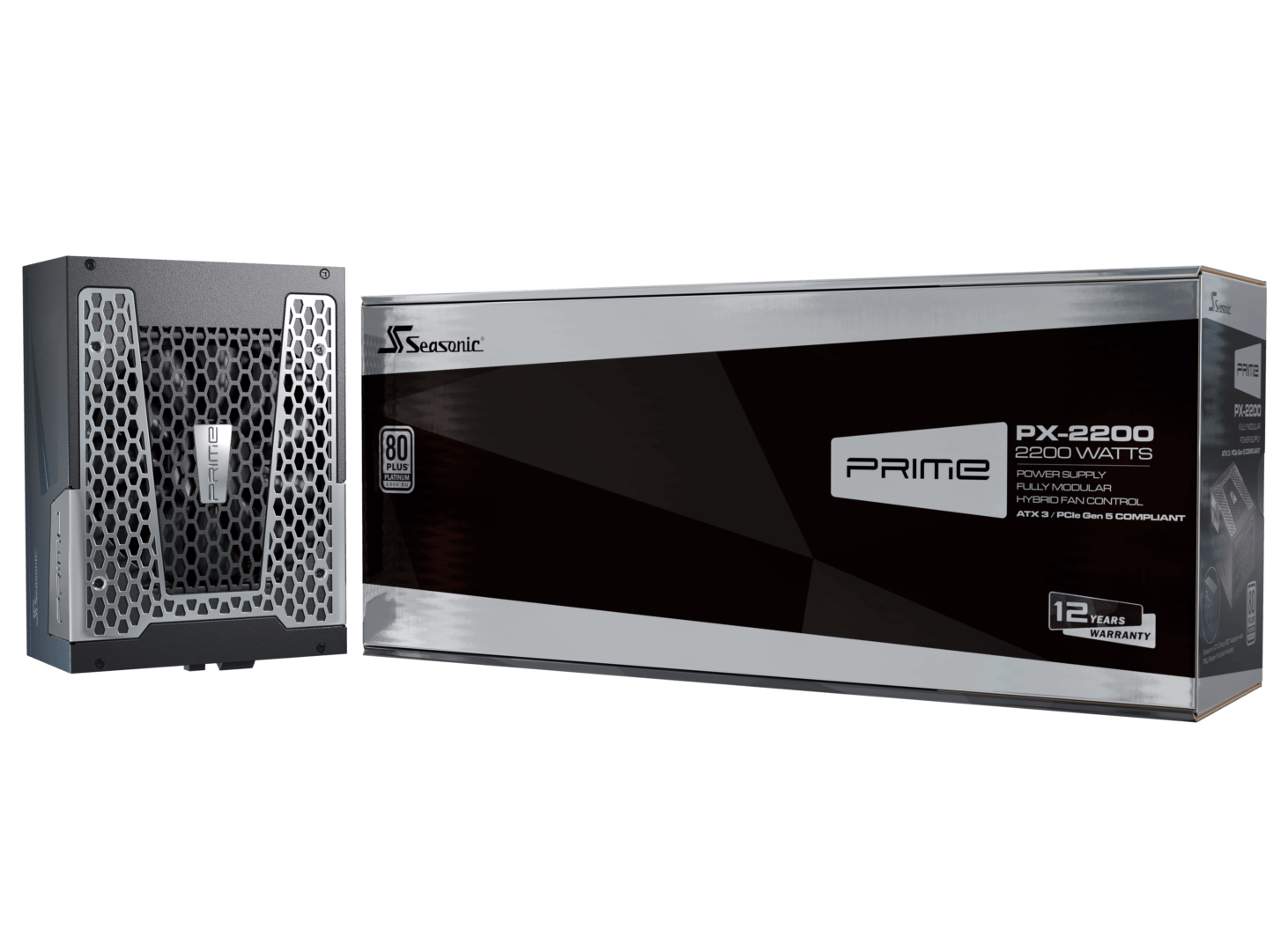

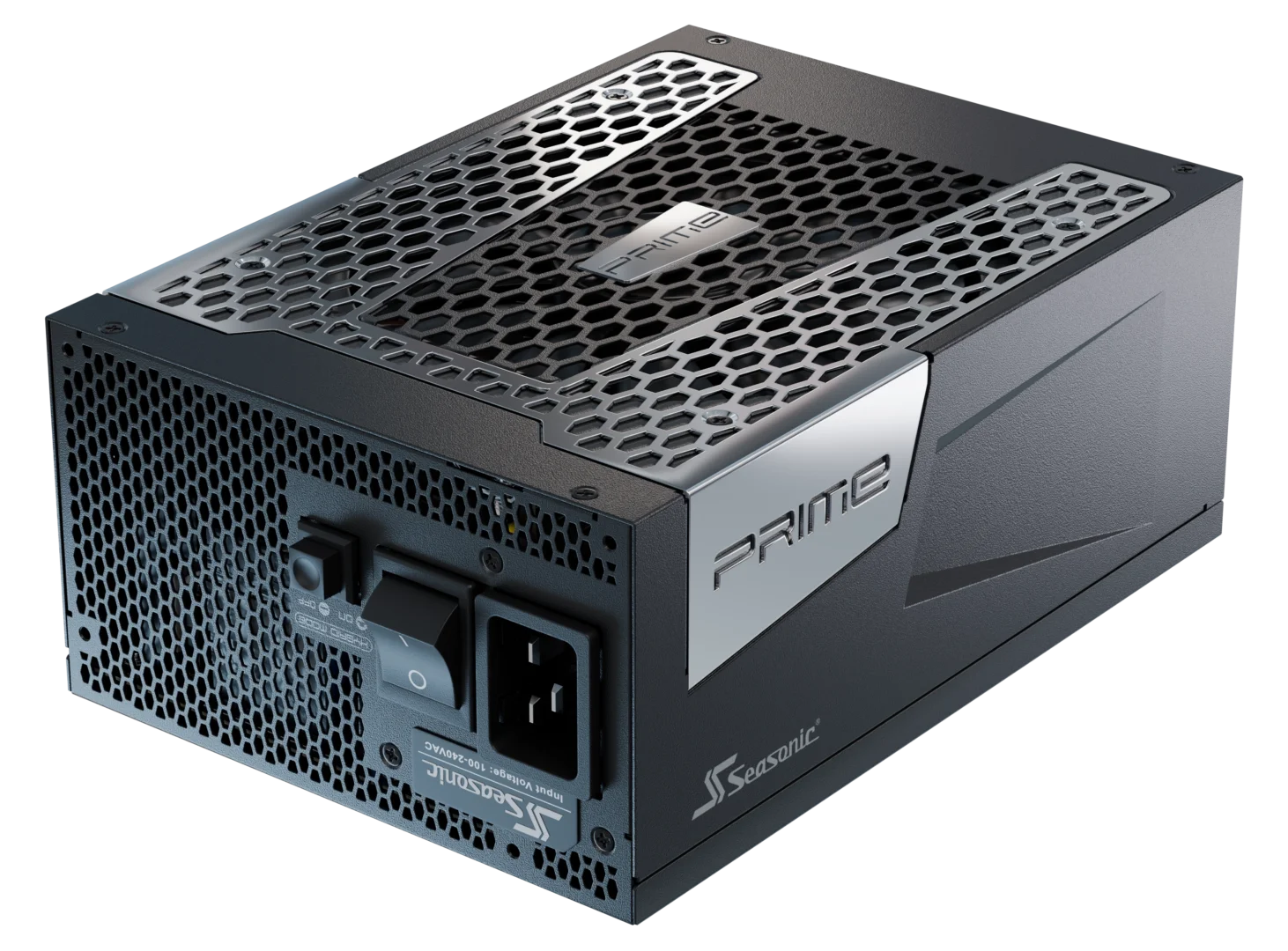

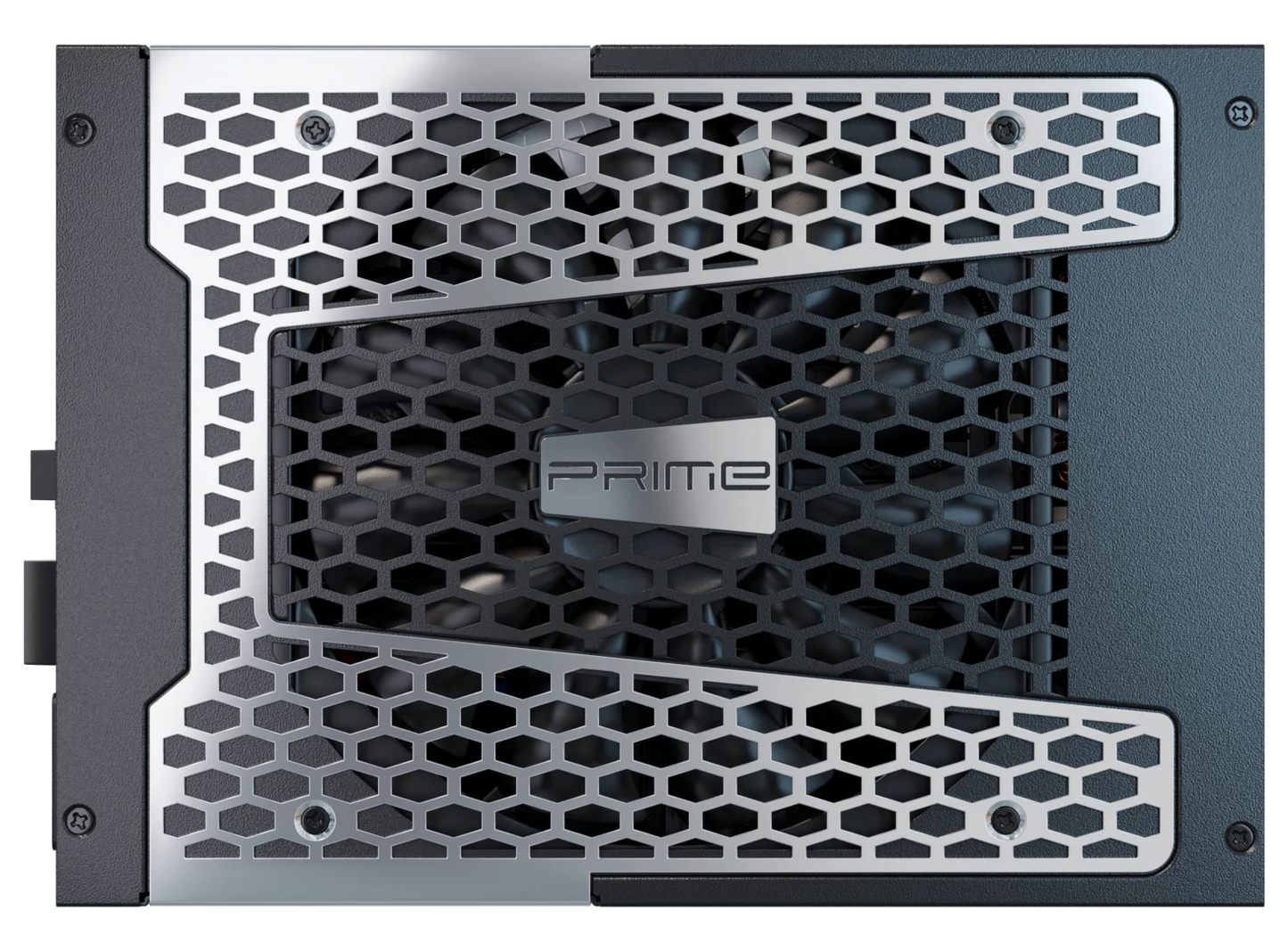

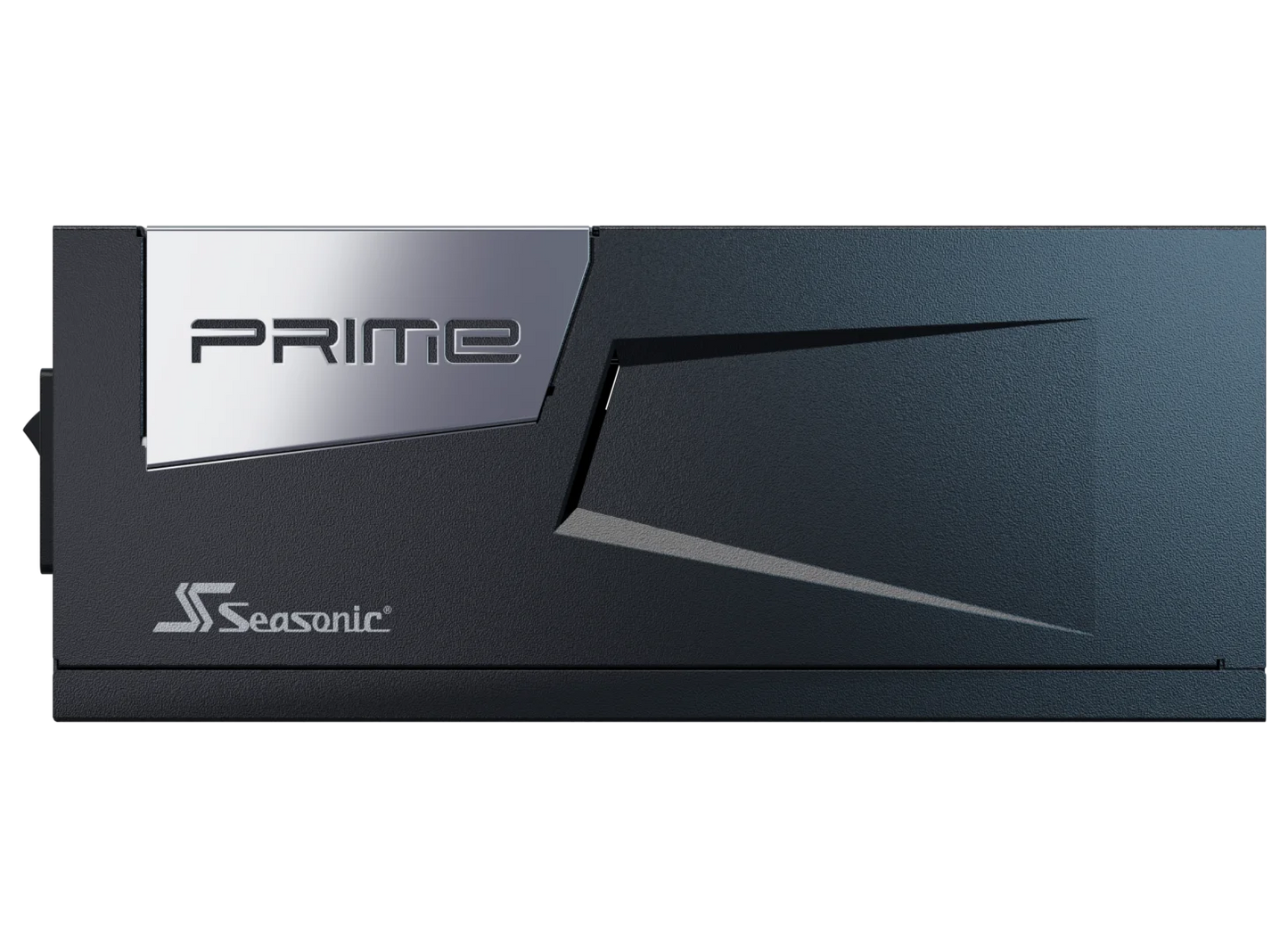

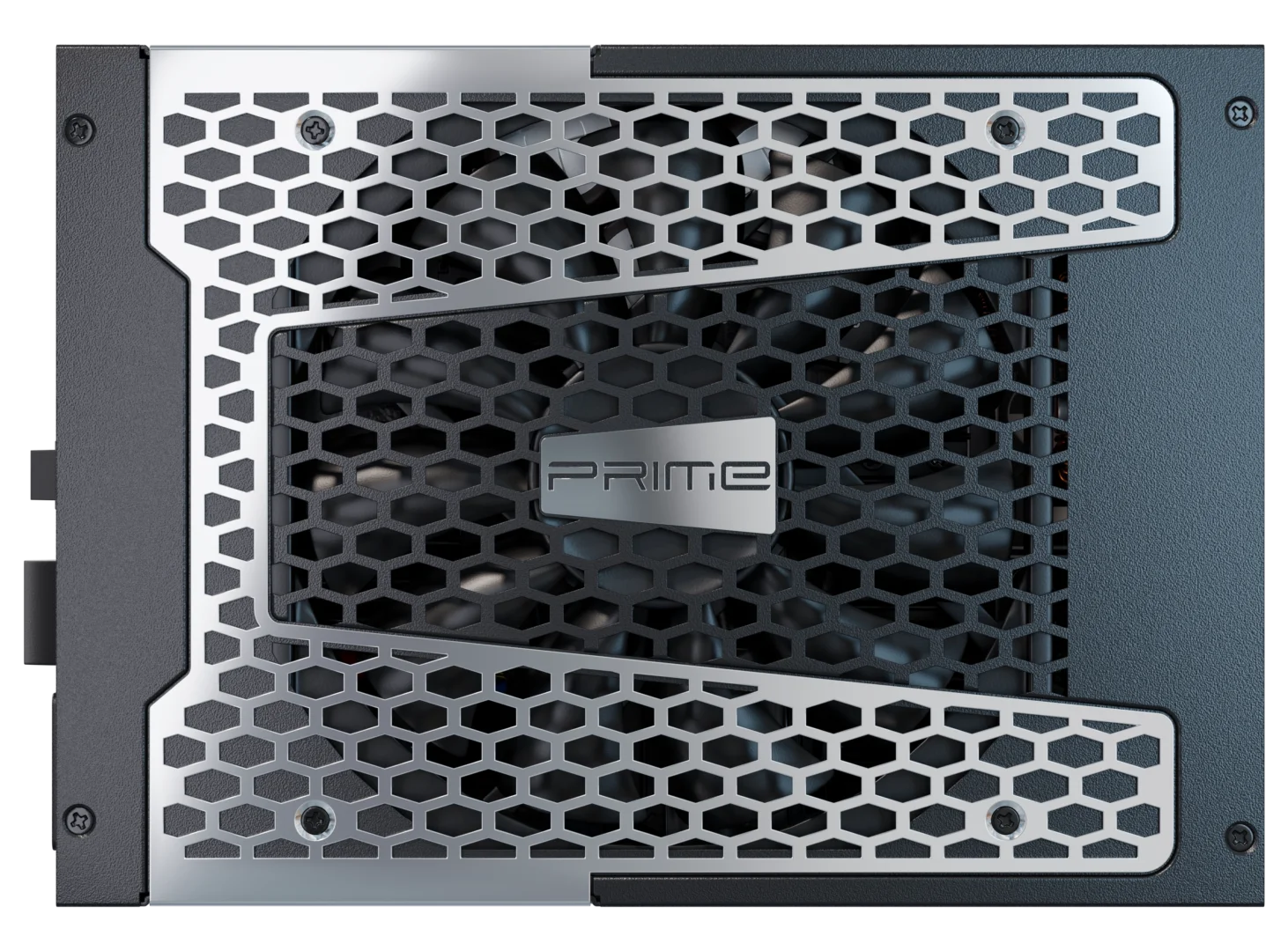

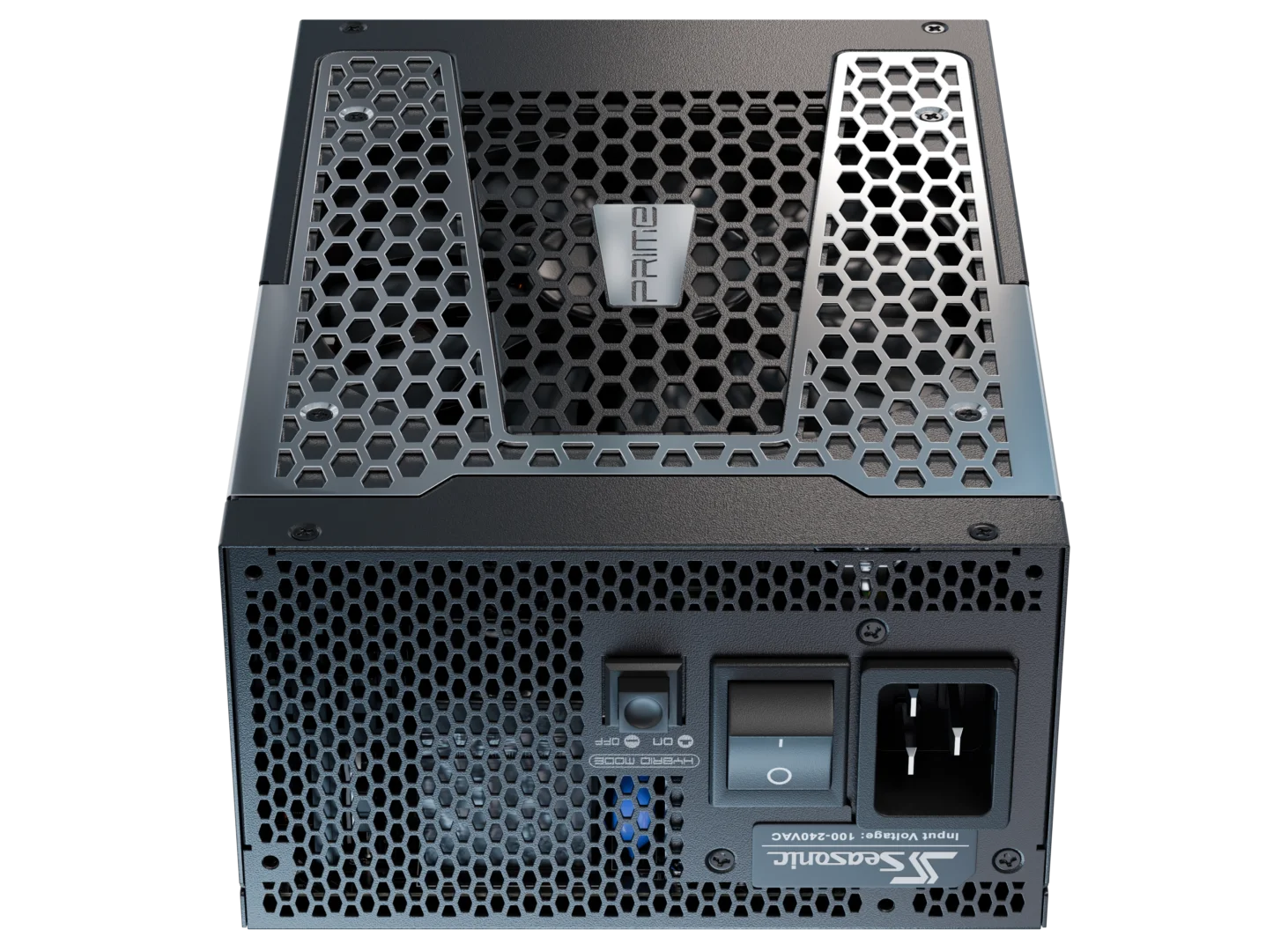

Seasonic PRIME PX-2200 2200W Platinum PSU
Seasonic PRIME PX-2200 2200W Platinum PSU
Couldn't load pickup availability
Delivery & shopping support
Shipping is calculated at checkout. Availability and charges depend on your product and postcode.
When will my order arrive?
Our store delivery estimates are:
- VIC: 3–8 working days
- NSW, SA, ACT & QLD: 5–10 working days
- WA, NT & TAS: 7–14 working days
These are estimates and may vary by product and postcode. Check any item-specific delivery notices and excluded postcodes in the description.
Returns & order help
Please contact us before returning an item. Check the return policy and this product’s description for eligibility, timeframes and any change-of-mind exclusions. For damaged, faulty or incorrect items, contact us promptly for help.
Need help with delivery or product fit? Email us before ordering.

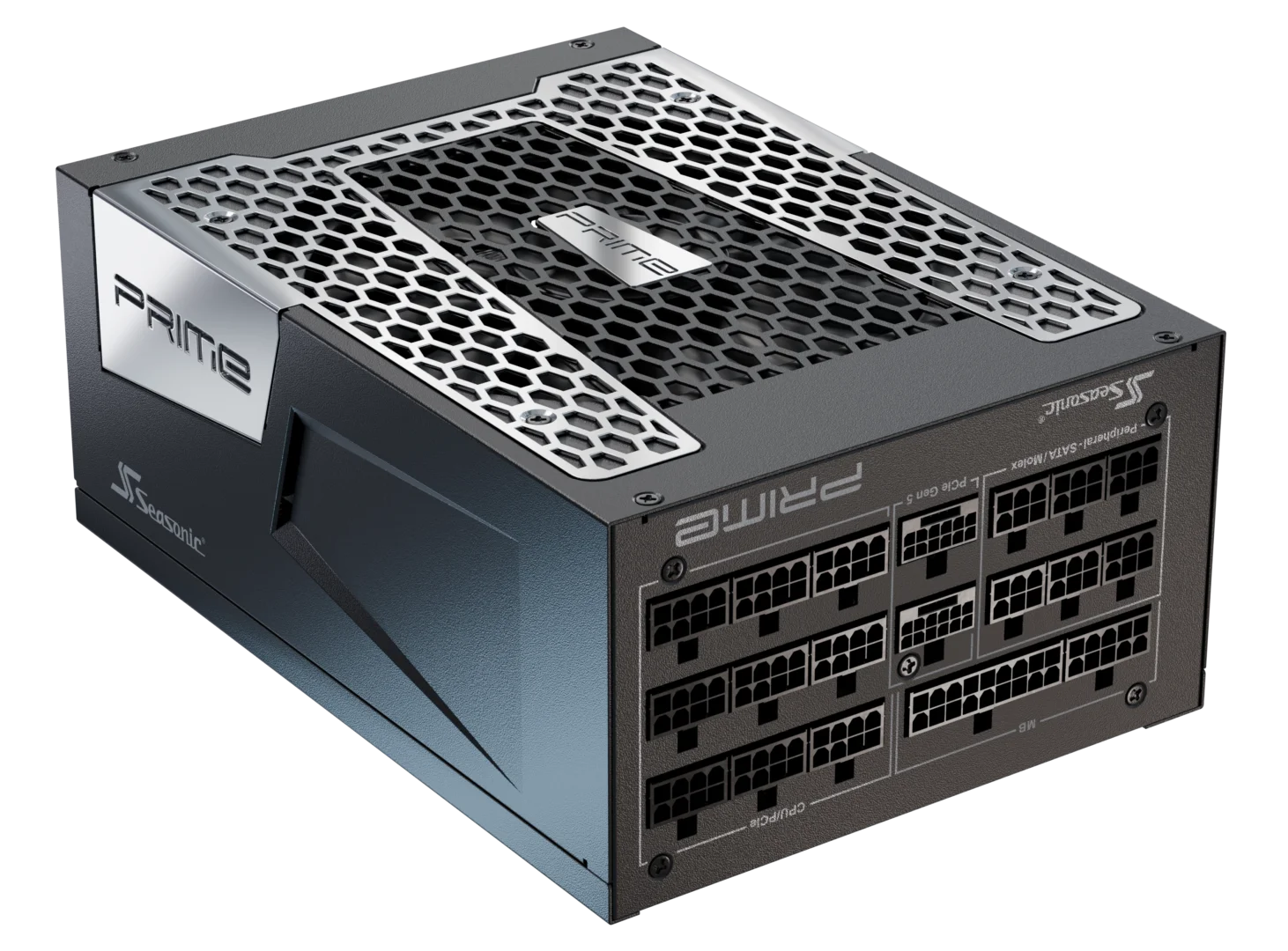

PRIME PX ATX 3.1
When selecting a power supply, it's crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.
SPECIFICATIONS
Technical Specifications | ||
80PLUS |
Platinum |
|
Cybenetics Efficiency Level |
TBA |
|
Cybenetics Noise Level |
TBA |
|
Form Factor |
ATX/EPS |
|

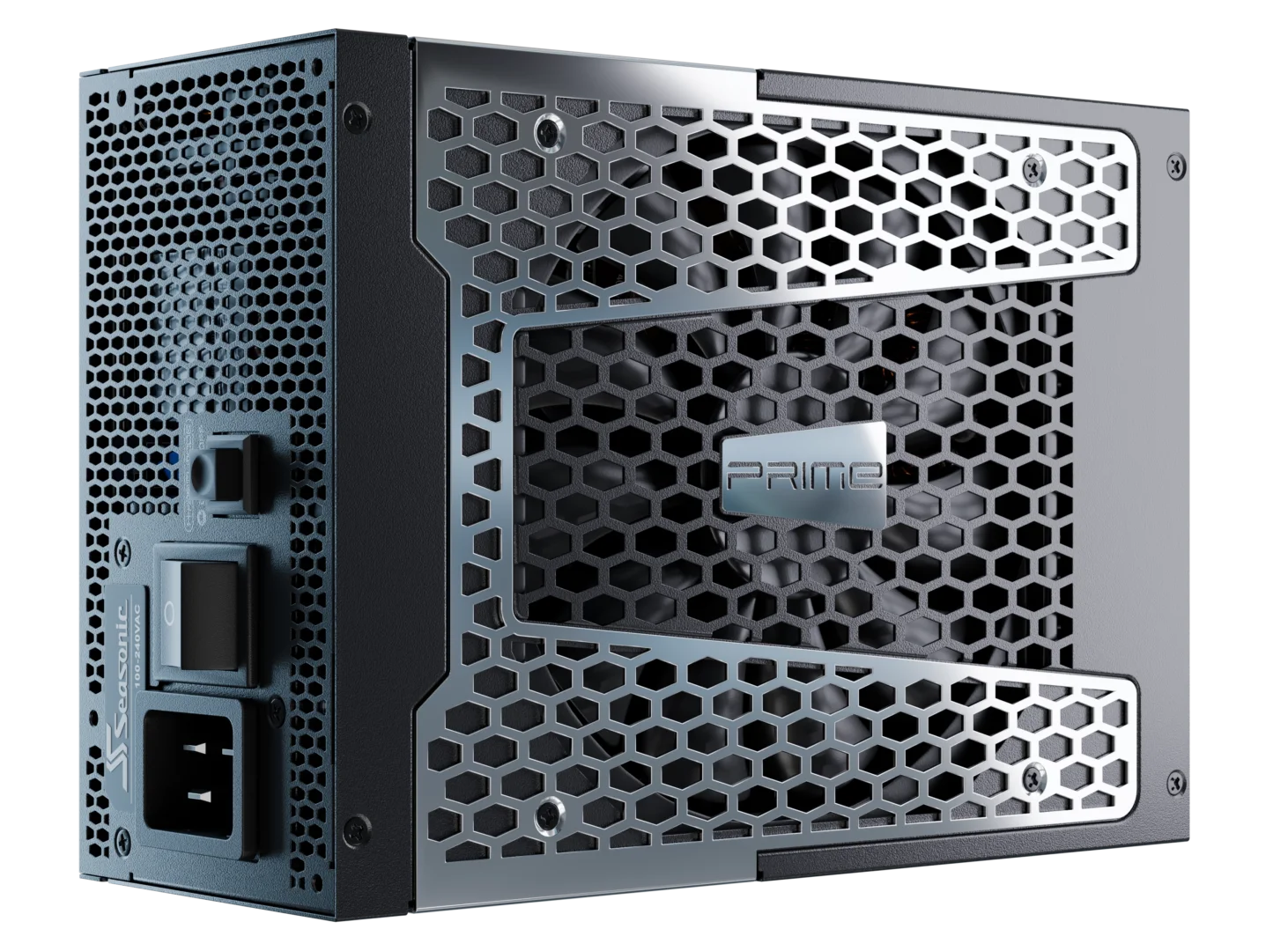

Fan Information |
Fan Size |
135 mm |
Fan Control |
Digital Hybrid Fan Control |
|
Fan Bearing |
Fluid Dynamic Bearing |
|
Life Expectancy |
50,000 hours at 40 C, 15 % - 65 % RH |
|
Cable Information |

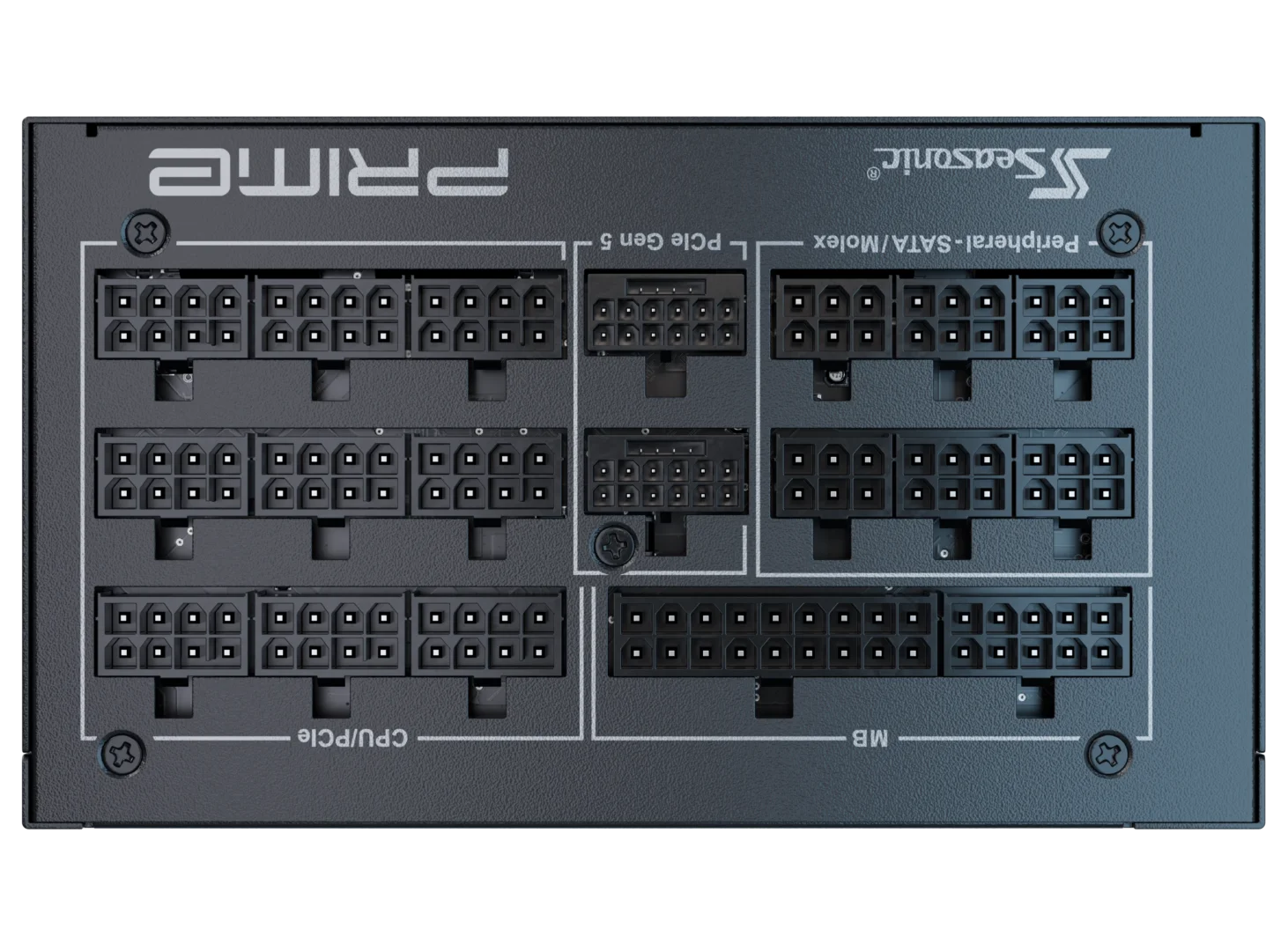

Modularity |
Fully Modular |
Cable type |
Individual Black Cables with Braided Pattern |
|
Electrical Features |
Operating Temperature |
0 - 50 C |
MTBF @ 25 C, excl. fan |
100,000 hours |
|
AC Input |
Fixed 230 V |
|
Protection |
OPP, OVP, UVP, OCP, OTP, SCP |
|
Safety and Environmental |
Safety and EMC |
cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
Environmental Compliance |
Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
|
Warranty |
12 Years |
|
Power Output | ||||||
AC Input |
Voltage: 200 V - 240 V |
|||||
Current: 15 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output |
Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
Maximum Power |
25 A |
25 A |
183.3 A |
0.5 A |
3 A |
|
125 W |
2200 W |
6 W |
15 W |
|||
Total continuous power |
2200 W |
|||||
